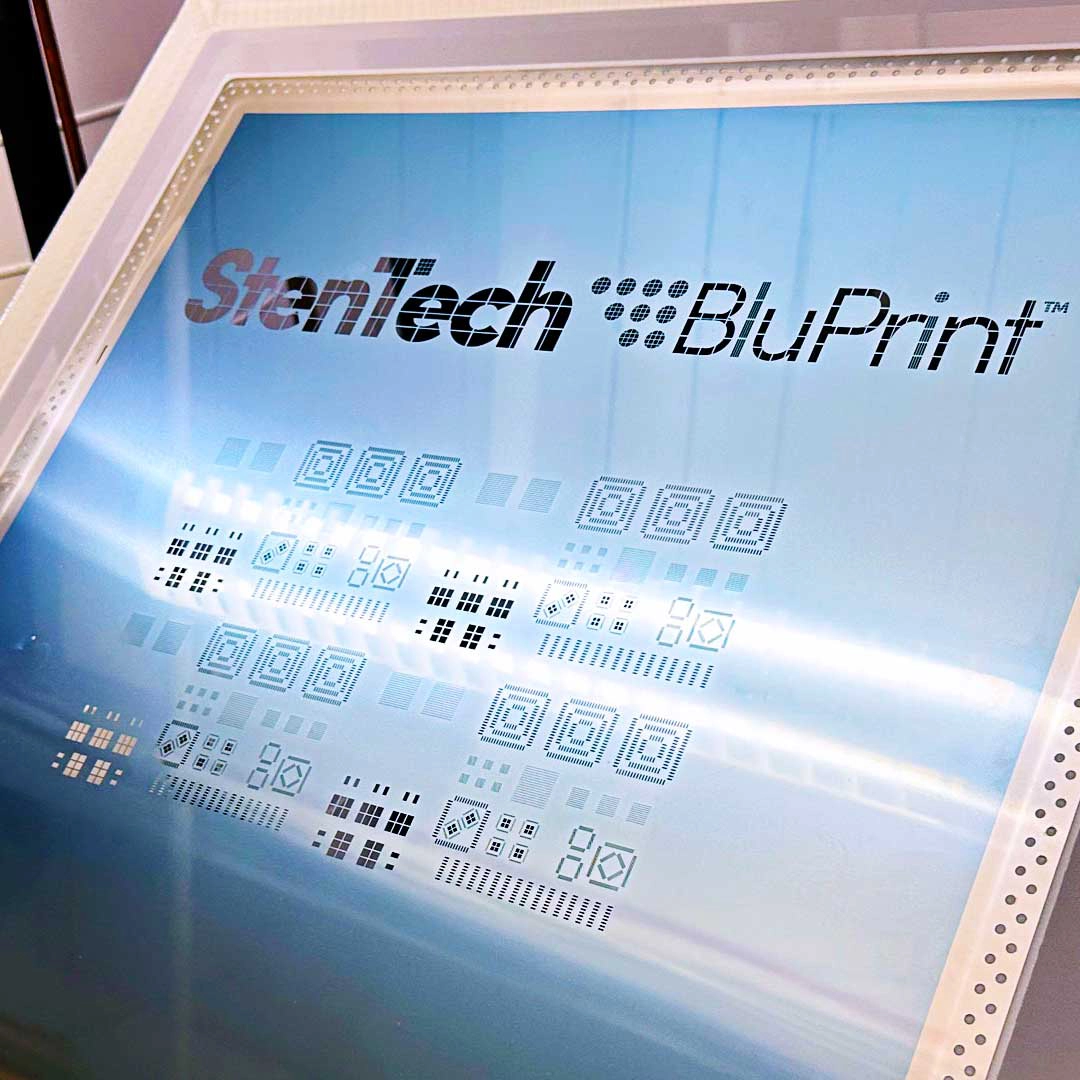

StenTech has been leading the way in laser cut stencils, being the first company to introduce Fiber Diode lasers into North America. With over 20 experienced CAD designers, our strength is the support we provide in stencil edits, material, and thickness recommendations.

Find a stencil

The Inside scoop

StenTech Acquires PET & UTZ

StenTech has successfully completed the acquisition of Photo Etch Technology (Photo Etch), a prominent stencil manufacturer.

Photo Etch Technology, along with its affiliate Utz Technologies, has built a reputation for manufacturing high-quality SMT stencils, mesh screens, and parts for both OEM and contract manufacturing customers.

stentech background
stentech background

Ops Update

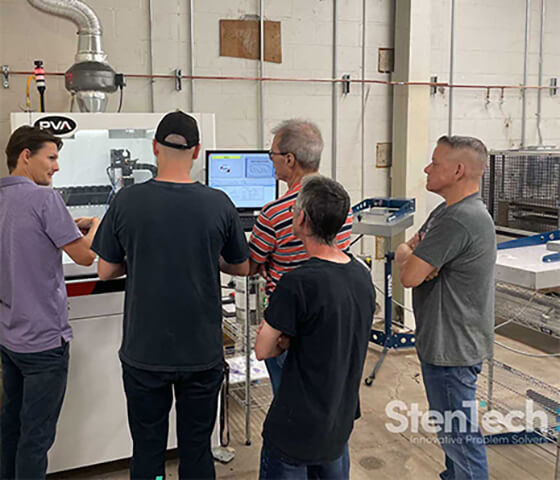

New New Hampshire Facility

We are moving the stencil operation from Derry to 1050 Perimeter Rd. in Manchester to make room for more tooling machines in Derry and to give stencils the ability to expand as well. It’s a huge and exciting move allowing us to continue to provide the best service and solutions to our customers.

stentech background

Technology Update

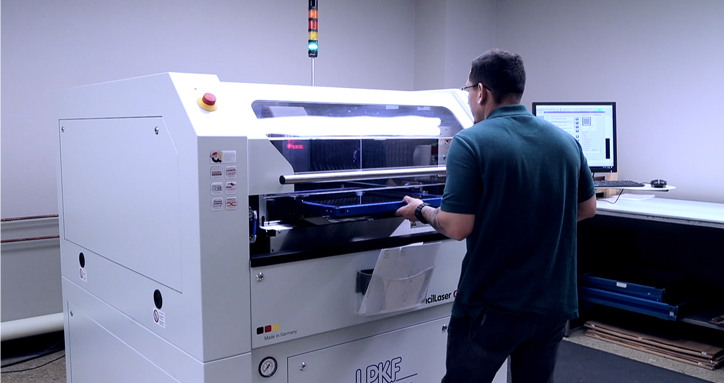

State-of-the-Art Laser Mexico

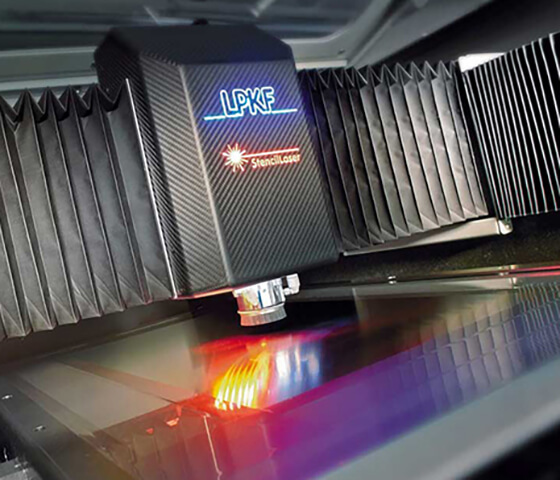

We are in the process of installing a brand-new, state-of-the-art laser system at our facility in Guadalajara, Mexico. This investment in the latest iteration of the StencilLaser G6080, manufactured by Germany-based LPKF Laser & Electronics, marks a significant milestone for the SMT industry in Mexico and underscores StenTech's commitment to its valued local customer base in Jalisco.

Area Ratio Calculator

StenTech has the capability and capacity to complete even the most demanding projects. By coupling highly trained professionals with the most advanced CNC equipment and the latest CAD/CAM software, StenTech Engineering offers industry leading quality and service.

* Suggested Powder type based on given aperture

Input

Select Shape | Units

Selected Unit is : MM

CALCULATE

Result

Recommendation:

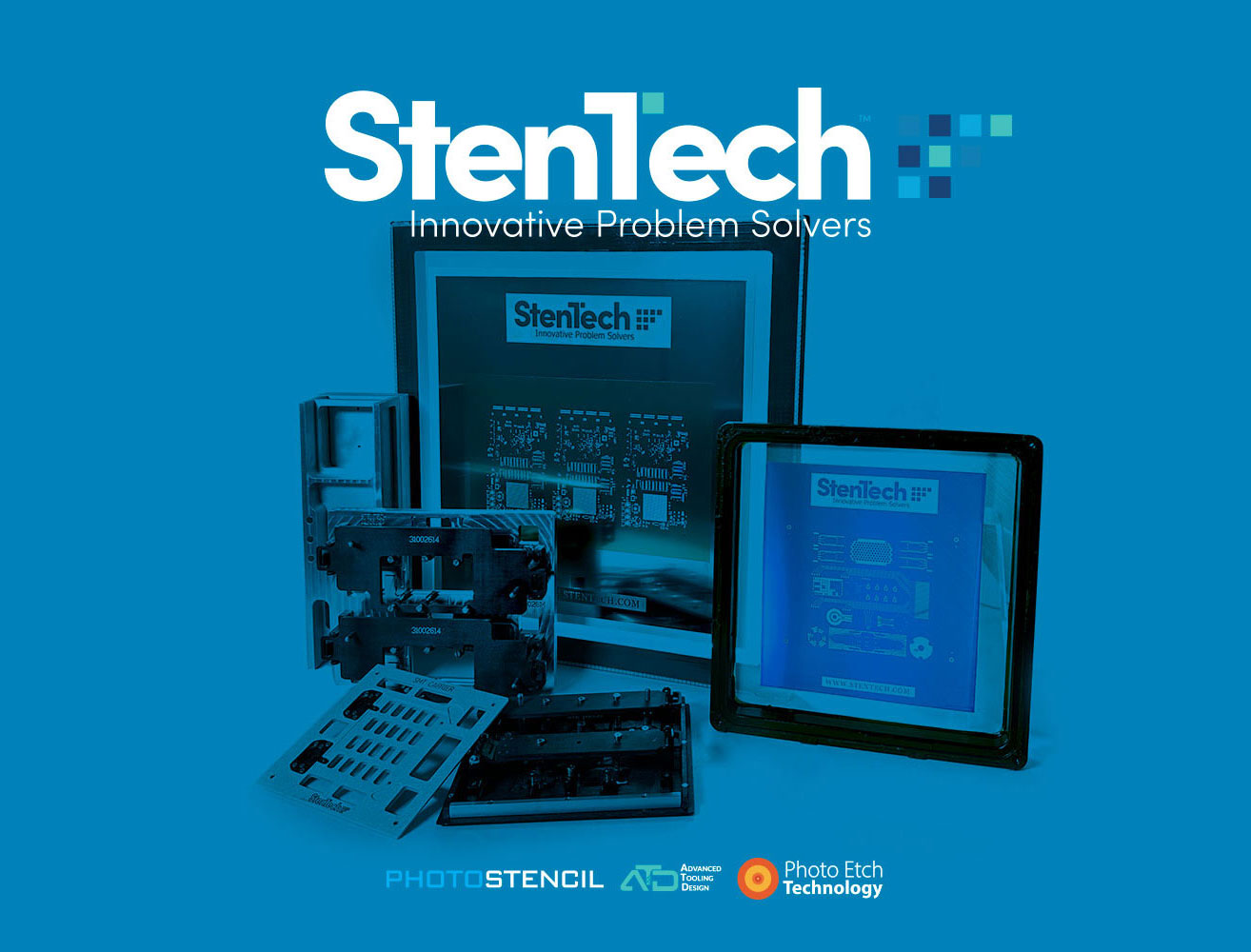

Stentech - the largest stencil & pallet manufacturer

Superior Advanced Nano

Our Advanced Nano stencil is a highly unique and patented coating that is applied to the bottom side of the stencil and inside the apertures, the squeegee side remains uncoated. This advanced coating provides the stencil with anti-adhesion properties. StenTech's Advanced Nano stencil utilizes a specialized 1-2 um hardened nano coating. This permanent hydrophobic coating repels solder flux allowing increased transfer of paste. Advanced Nano Stencils improve solder paste deposits which results in consistent paste transfer volumes and minimizes bridges which leads to higher process stability with lower failure rates.

Watch the video
Advanced Nano Video

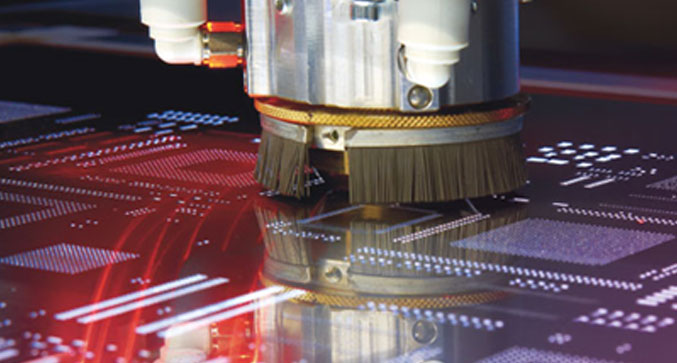

laser technology

Superior Laser Technology

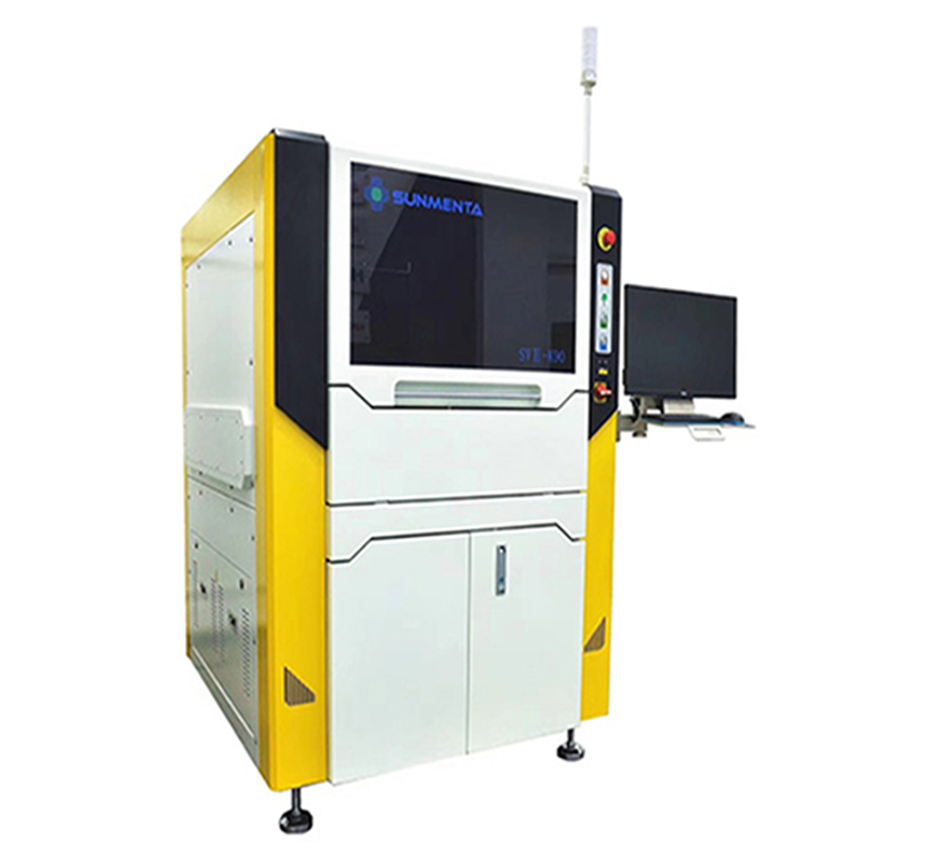

StenTech, would like to introduce the Sunmenta Stencil Inspection System SVII-K90. The SVII-K90 is the leading fully automatic stencil inspection machine! The Inspection system can be used for incoming stencils and improve inspection after the cleaning process. It will identify partial and fully clogged apertures, right down to 01005.

The SVII-K90 is the leading fully automatic stencil inspection machine, it will reduce or eliminate the use of a stencil that has clogs after cleaning.

The SVII-K90:

  • Will scan your stencil very quickly
    • Provide an output to show partial clogs
    • Ability to automatically locate and view the image
  • Operator can then decide whether to:
    • Remove the clog manually
    • Apply Air Pressure
    • Or the operator can put the stencil back through the cleaning process

Watch the video

StenCad Design Services

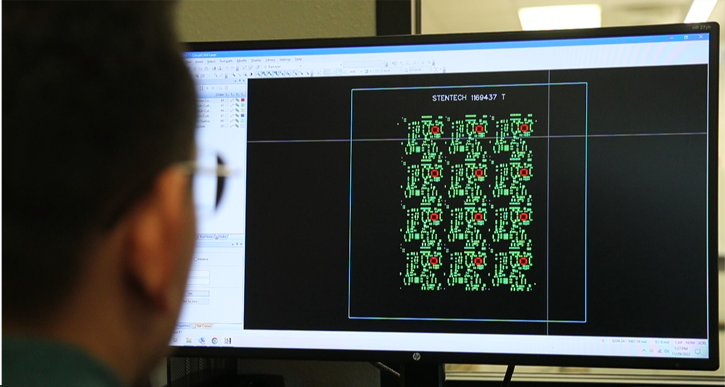

StenTech is now pleased to offer its customers the opportunity to take advantage of our design service, which includes a front-end software tool called StenCAD. StenCAD automatically checks the design for each individual assembly by filtering each D-code of the Gerber file and validating that the AR achieved by the proposed design delivers a successful paste deposit.

If StenCAD triggers a warning, we will contact you immediately and provide a report that shows where the printing might be compromised and allow you to evaluate potential solutions, such as modifying the aperture or decreasing the stencil thickness. Each modification will show the projected effect on the printed volume on the target aperture, as well as showing how other aperture volumes might be affected by any change.

StenCAD also creates customer specific component libraries. Anytime a like component is found on other orders, the preapproved modification is automatically applied. This offers our customer the most consistent stencils possible.

Using our service and the StenCAD tool will increase customers’ confidence in getting the right volume or paste before a board is printed, saving both design time and rework time for our customers.

Watch the video
logo

Quick

Integrated into our normal stencil design process

logo

Clear

Visual highlighting all potential printing issues

logo

Time Saving

Try out stencil design changes that will prevent printing issues before the stencil is made

logo

Safe

See the impact of any changes on the rest of the board

logo

Informative

Estimate volume of paste per board

Trustworthy, reliable, your partner.

Customers Feedback

“We have been doing business with StenTech for over 3 years and have never had a complaint. StenTech has always provided a quick and prompt on time delivery. The employees are always a pleasure to communicate with and their professionalism and quality-first mentality definitely carry over to their product. StenTech's knowledge of stencil technology and applications have helped us with DOE projects and provided ideas that have improved our processes. Their willingness to work with us and their quality has created a long lasting relationship.”

Billy Klinger

Circuit Technology Inc.

“ A+++ Excellence Service! Best overall service we have had when ordering any of StenTech product line over the past 5 years of dealing with them. Next day delivery on stencils, this is superior against other stencil houses I have ordered from.”

Mark Martin

Assistant Engineering Mananger, BEI Electronics

“I would like to express what a great job StenTech in Austin has done for Silicon Hills Design over last few years. All stencils orders have been on time and some times I can get a stencil the same day. All the guys have performed detailed work and have been able to create paste layers when customers cannot provide them. We also started using StenTech SMT fixtures and we have been pleased with the quality of the work.”

Mark Estorga

Silicon Hills Design, Inc

“StenTech service and customer focus are unparalleled. Very fast turnarounds, even when rushed, and prices that are very competitive. Your ability to solve our cutting plate problems (CNC milling services) was impressive. Thank you for being so courteous even when we are often very demanding ”

R. Doucet

Process Engineer, CAE Inc.

“StenTech has a history of quick turnaround and dependable quality. They have always been helpful with diligent and professional service on special requests such as rush orders, custom stencil framing, reframing, and special designs for glue printing or pin through paste applications. We love doing business with StenTech.”

Christian Morining

M.Sc.A., President, Optimont Inc.

“I'm happy to tell you that your service thus far has been excellent. The quality of your stencils have helped tighten our processes and your turnaround time has kept our customers happy. Overall, the experience has exceeded our expectations. Keep up the good work”

Tom Ferrin

Techfabrik, Inc.

stentech-img
company background

OUR MISSION

Our mission is to empower customer success by being the trusted partner in delivering quality products and innovative solutions for leading electronic manufacturers.
