- Wipe-on application for precise, controlled coverage
- Instant surface transformation with easy application
- Outstanding hydrophobic and oleophobic properties
- “Easy-to-clean” surface with abrasion resistance
- Conforms precisely to stencil surfaces
- Clear, durable nano-layer resistant to repeated cleaning
- Reduces downtime and increases yields
Wipe-on Precision Coating for Efficient Production
Strong, Cost-Effective Stencil Coating
As electronics become smaller and production demands faster cycle times at lower costs, the stencil industry faces increasing pressure to deliver both precision and efficiency. Conventional stencil treatments can slow production, increase waste, and add unnecessary costs—especially when stencils require lengthy rinsing and drying or when wipes are overused and discarded.
MicroShield by StenTech redefines on-contact hydrophobic stencil coatings. Its unique chemistry allows for hand application directly onto solder paste stencils, providing precise control over coverage while eliminating the need for rinsing or extensive drying. This reduces cycle times, improves yields, and minimizes material waste.
Designed for both small production lines and prototyping, MicroShield delivers a cost-effective, user-friendly solution without compromising performance. Every drop is applied exactly where it’s needed, giving engineers control, efficiency, and consistency in every production run.
Features & Benefits
Bridging Improvements
Components are protected in the form of isolation from one another during application.
Lower Standard Deviation
Conditions for printing are superior, notably with fine pitch components.
Better Underside Cleaning
Preventing apertures from damage and constrained transfers, allowing for an overall reduction in stencil defects.
Advanced Stencil Coating for Better Paste Release
MicroShield OC-1500 is an advanced on-contact hydrophobic and oleophobic coating designed for solder paste stencils. It instantly improves paste release, enhances deposit profiles, reduces bridging, and lowers cleaning frequency, helping to increase efficiency and consistency in SMT production.
Application is simple: dispense 0.25 oz (7 mL) onto a folded lint-free applicator and spread in a circular motion, focusing on apertures. After two minutes, buff the surface for 90 seconds to remove any residue. An electric palm buffer can be used with a dry applicator cloth to reduce effort while maintaining coverage.
The coating forms a chemically bonded nano-layer at the surface, creating a durable, abrasion-resistant finish. Unlike conventional polymer coatings, it works instantly on contact and can continue to improve over time. Its nanometer-thin layer preserves the measurable properties of the underlying metal while providing lasting performance.

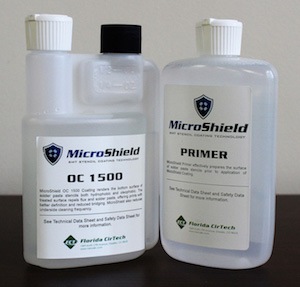

MicroShield is supplied as a multi-use kit, including 250 mL of coating, 250 mL of primer, and lint-free applicator cloths—enough to coat approximately three stencils.
